Function: android, GPS, Quad-core, FM radio, Mirror link, WIFI, Capacitive touche, 1080P HD video, Reversal priority, Lossless
music, Steering wheel controls, etc.

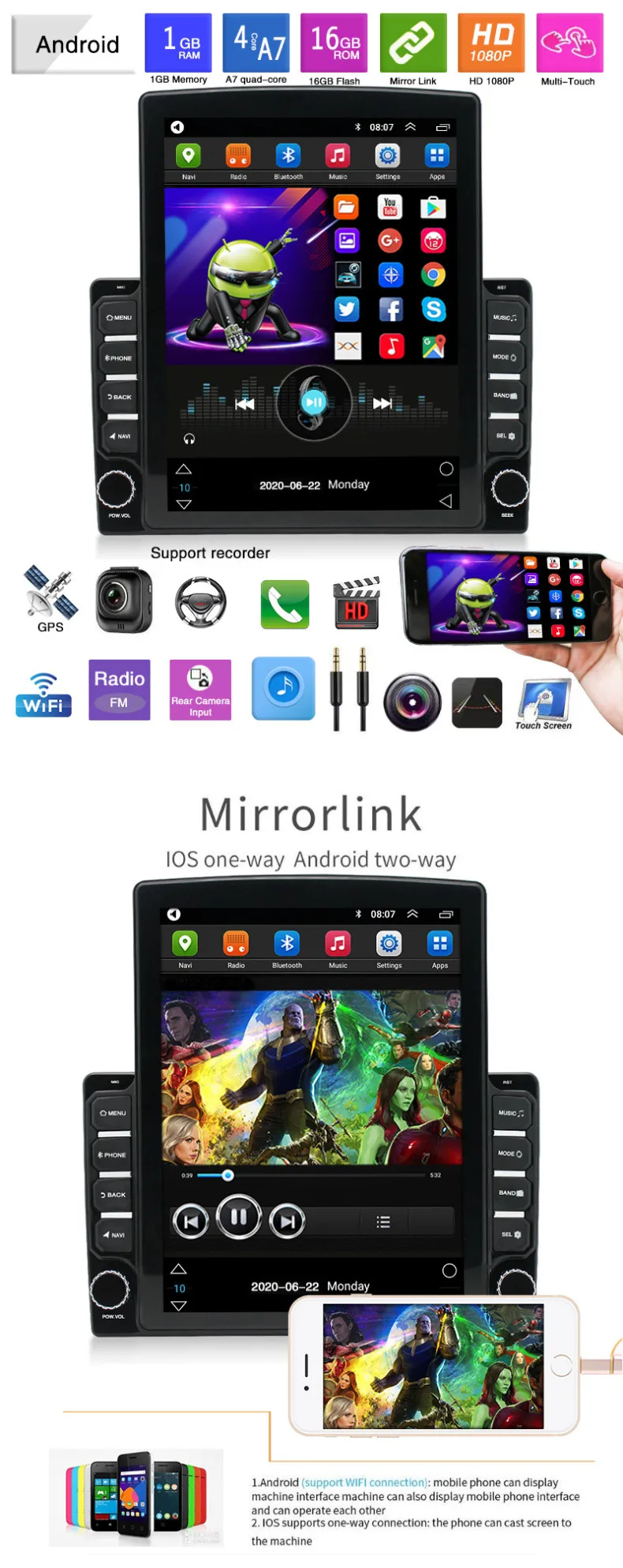

1. Android 9.1 OS,9.7 inch 1024*600 Capacitive Screen
2. Quad core ARM®1.3~1.5GHz Cortex-A53

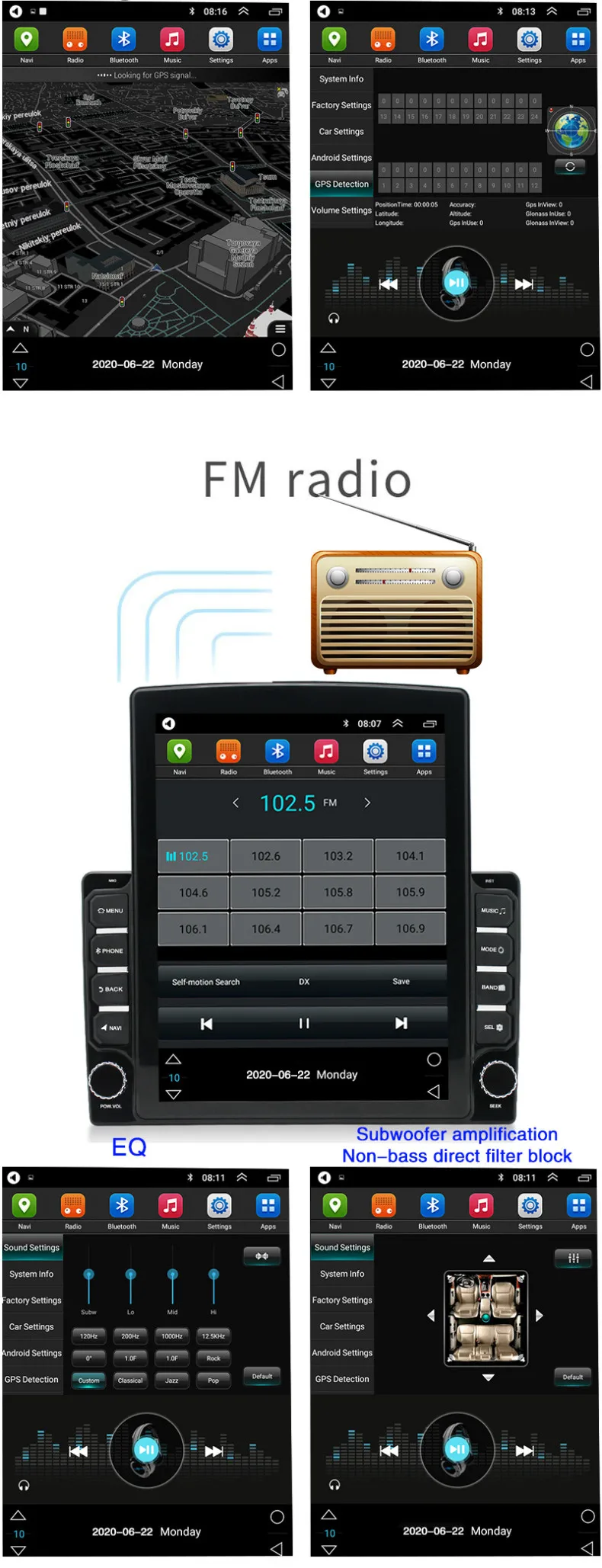

3.Mirror Link for Smart Phone(Mirror-link):Mirror your phone on the 7 inch big screen.You can mirror on the unit via USB cable or wifi connection for Android devices. For iPhone, you can only mirror on the unit via wifi
4. Plentiful Free Application,GOOGLE PLAY.
5. Reverse camera/Drive Record DVR: Support(need to buy separately)
6. Support steering wheel control learing
7. Support Brake warning
8.Bluetooth (4.0) for handfree. Bluetooth Phonebook,Bluetooth music player
9.DAB: Optional (get the better sound quality and stronger receiver)
10.Audio playback: MP3，FLAC，APE，WMA，WAV，AAC，AMR
11.Video playback: AVI，ASF，MP4，MOV，MPG，MPEG 1/2/4，VOB，MKV，FLV，TS,WMV，RMVB，3GP，1080P
12.Support picture browsing (JPEG and other formats)
13.Support dynamic menu.
14.Support TF card, high-speed USB 2.0 (UP to 32GB)
15.Full-function operated touch control NO remote control.
16.AUX audio input interface can be an external MP3, GPS, mobile phones, music players and other audio input.
17.Dual USB:USB support for high current output, for USB DVR,for mobile phone charging
18.Trial GPS Map For Free Support Google map.IGO Waze.Navitel.Support GPS working online or Offline
19.Play the role of your MP3, MP4 player,radio, DVR,your parking sensor, etc. It’s your best choice to your car.

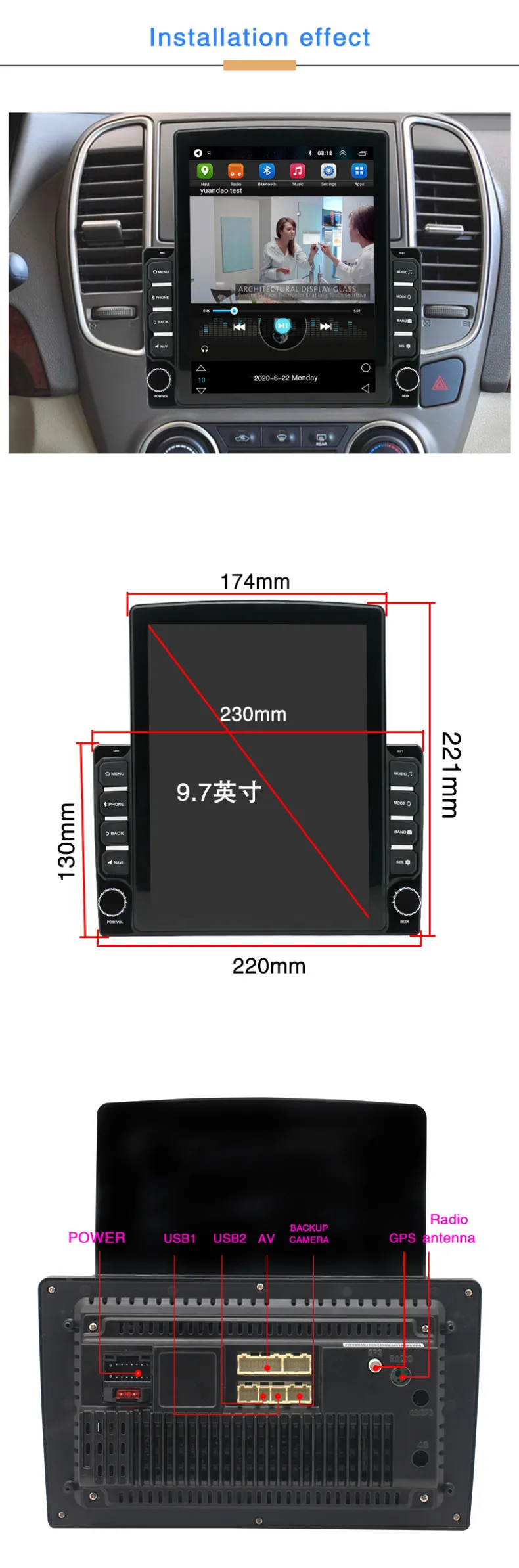

1.Touch Screen size: 9.7 inch
2.Voltage: DC 9V-17V
3.Speaker impedance: 4ohm
4.Maximum power: 45W*4
5.FM tuning range: FM: 87.5-108MHz ；
6.Mirror Link:Support Mirror link function via android and iOS mobile phone.Android phone connecting via USB slot or WIFI.As it is
very strict with the data cable.Please use the original phone USB cable.iOS mobile phone connecting via WIFI hotpot(iphone only
7.Car Parking System Assistance:It is with Guide Line. It will turn into the parking mode automatically,and help the driver to
correct judgment parking location under the night version.(Rear View Camera Not Included,pls buy the camera without guide line
8.Support DVR input,easy to control DVR on the display screen.(DVR is optional, need to buy DVR seperately)
9.High resolution: 1024*600 Ful HD. 7″ inch LCD Touch screen give you a fantastic experience to watch HD video. Support video
playback format of AVI，ASF，MP4，MOV，MPG，MPEG 1/2/4，VOB，MKV，FLV，TS，WMV，RMVB，3GP，1080P and so on
10.Bluetooth function: Built-in Bluetooth for Wireless Audio Streaming, Built-in Microphone for Handsfree Call. Solve your calling
problem when you drive. What’s more? Connect your phone with bluetooth function, raise the sounds of your GPS and your favorite
songs in the car speaker.
11.Operating temperature: -20° to 60° and Storage temperature: -30° to to 70°
Its factory has established the complete production system from raw materials to finished products. We had via ISO 9001 qulaity management system certification and CE, FCC, ROHS certification.
We not only promote our product, also emphasize on providing professional technique and good service. Customer’s satisfaction and prompt delivery are two points that never change. Good reputation is our strong backbone. Because of this, we maintain our reputation with excellent quality and prompt delivery service. We sincerely hope, we have a long-term cooperation with mutual benefits; the common benefits between us can reach the biggest intersection. We has a skilled responsible and committed team work who will ensure your requirements will be met promptly and fully.
Welcome more and more before market and after market clients / Wholesaler/ Distributor/ Agent/ Car accessory dealer/ 4S shop/ E-commerce partner join us !
carefully once you place the order. We will send the products to the address you left to
us. province,city name and zip code is needed.
2. Item are shipped from china; reach most of the countries within 3-28 working days.
3. Please contact us if you do not receive the products in 45 days, and please give us 3 days for checking the reason.
4. All the goods will be sent out in 3 days. Because we need 1 day to send the goods to the warehouse,so the tracking number need to wait till the second day. 10days After we send out the goods, Alibaba will confirm your get the order automatically. If so,your
rights are still can use.please do not worry.
5.- You could Not Rerount
-You ccould Not Hold to pick up
-You could NOT correct the address
-The courier company will return the package to us after delivery two times,If buyer request us to resend parce,buyer should bear both the return and resend postage. Above is the policy of courier company.Hope you could understanding and attention.
NOTE: We do not bear any additional charge(like duties or taxes etc) by your country,please pay attention to your local Law!
6.The office hours of the shipping center is from Monday to Friday except public Holidays.
For the Remote area destination,DHL and UPS will charge you 45USD for the remote area fee. So if you live in a remote area,we
advise you to ship the item to a normal address(like your friend or work address)
DHL Remote Area Post Code
You can check if your area remote or not by this link: http://raslist.com/jsp/first.jsp
2. All major credit cards are accepted through secure payment processor ESCROW.
3. Please make sure you read the entire description and agree to the transaction before buying.
About Warranty And Returns:
3. Buyers are responsible for return shipping with proper packaging.
4. Once receiving items, we will refund you immediately.
5.Return With 30Days:We will provide either exchange or refund for a defective product or dissatisfied product which reported with
6.12-Months Warranty:We provide a 12 months warranty of all our goods.
1. Buyer is responsible for the return shipping fee.
2. We suggest you to install the goods by profeesional and contact us when installing issue happened.However we are not
responsible for installing or uninstalling
Damage Or Missing Componets
Our products are all brand new and inspected carefully before sending out.Please check the package carfully before the courier
If you receive DOA item or missing parte.please keep and report in 7days.support your phone number and photo about damage. claim
to the courier and give us the case ID.and it may take about 2 weeks for express company to investing the case,.thanks for your
Our of Warranty:
-Damage cused by :under wear&tear.dirt,misused,improper installation or operation,neglect,accident.
-Any demages caused by improper packing when buyer return to us.
-If the item was disassembled or repaired by unauthorized person
5 Stars feed back to us if you are satisfied with our goods and service plkease.
2. We care about our value customers, and will always do our best to help you. ‘
3. Please give us the opportunity to resolve problem before leaving any negative feedback or opening any dispute . We
understand the concerns and frustration you may have, and will do our best to solve the issues.
About Taxes Customs And Duties
1. Import duties,taxes and charges are not included,the buyer should check with your local customs office about the additional
2.Some countries customs may charge taxes for importing goods from another country,such as import duty,value added tax,purchase
tax, customs clearance fee ect.
3. Buyer as an importer,should pay the costs if needed, buyer can not concel the auction or request a refund or resend the goods
under this situation.
4. we will try our best to help our buyers to minize the risk of paying taxes.eg, write the item as a sample.a gift or lower the
value.but we will not bear any responsibility if there is any problem caused by this.
reply to you as soon as possible.we care about our customer, pls feel free to contact us, thank you!
2. We are not responsible for any custom duty or tax since our price do not include this charge.
If shipping by DHL some Remote Areas not include RAS ( DHL Service Charges in Remote Areas) fee. It is the buyer’s
responsibility to pay RAS fee. We are not responsible for any RAS fee since our price do not include this charge.
If you come from Brazil, Argentina or Chile, please tell us your TAX ID. Otherwise the product can’t be shipped.
TAX ID name:
Chile: RUT NUMBER Brazil: CPF NUMBER Argentina: CUIT NUMBER
Russian: Full name (name and passport information) in Russian and TIN number
1>Please check the Voltage of car radio :DC 12V
2>When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.
3>Replace the same type of insurance to test the car radio.
Note:Mustt use our power cables to connect the radio,it is can not insert the original car plug directly into our machine.
1>Please check if the camera’s wire is properly connected to the car radio.
2>Note:The video port of rear camera must insert the “CAMIN” port of car radio.
1> Please turn off the “Video Warning” function in the settings,then will be OK.
1>That time clock is a function for the car radio ,that can’t be removed.In fact that car radio had been turn off,it save the time are more convenience for people to see,
2>If you don’t need this,you need to unplug the power positive and negative.
1>When you are not using our original audio cable, please check if your audio cable is suitable for our radio.
2>Please check if there is any collision between the lines.
3.>If the line is connected, there will be no sound when the speaker cable touches the speaker cable.There is no sound too when the power cord touches the speaker cable.
4>If no use,please use a single speaker to connect a group of audio cables to test the car radio. The four speaker
cables are connected separately to see if there is any sound.
1> No radio antenna inserted.
2> Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted.
3>The signal of your location is not good. Please go to a better place to test again.
4>The radio antenna on the car is broken/no effect; please replace the radio antenna and test again;
